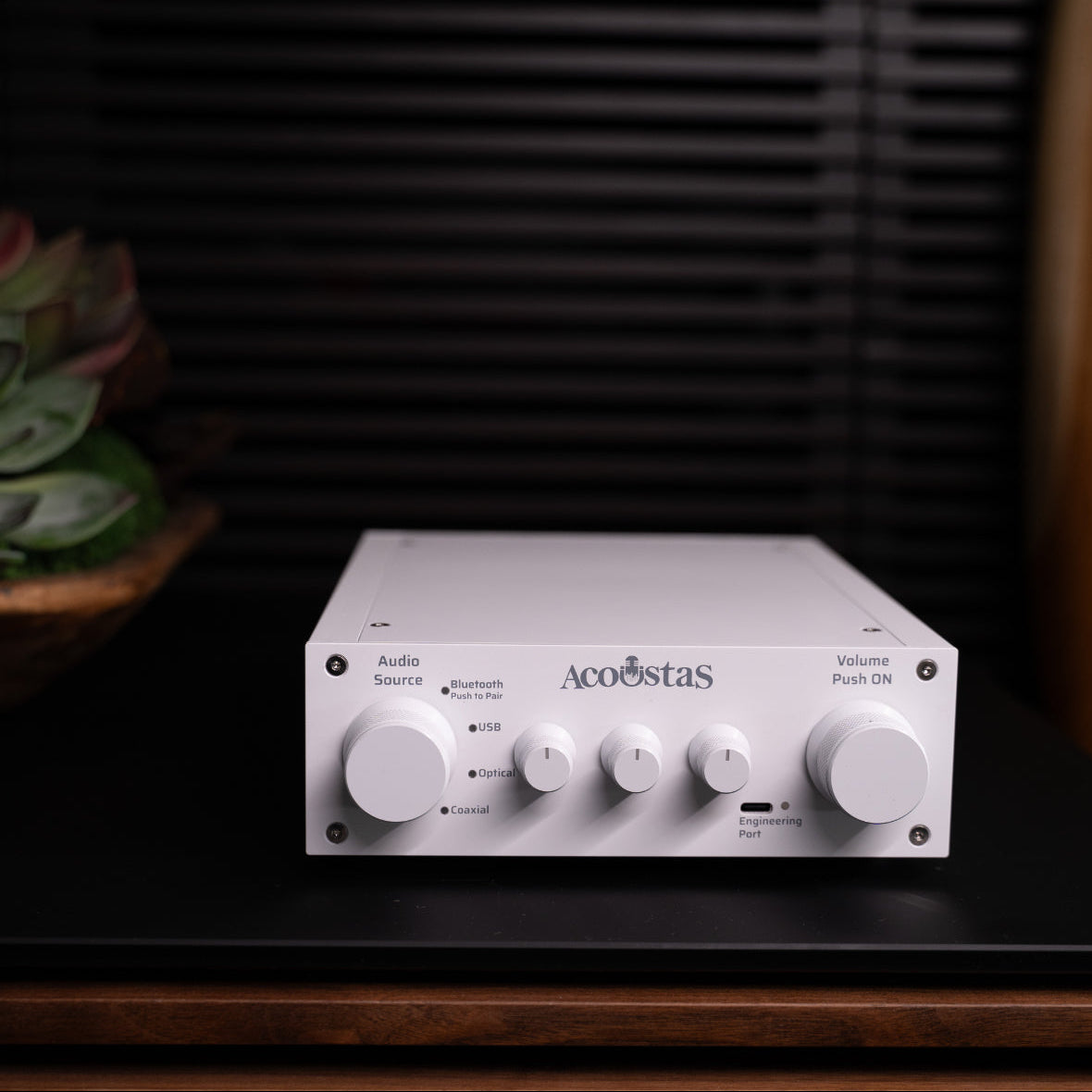

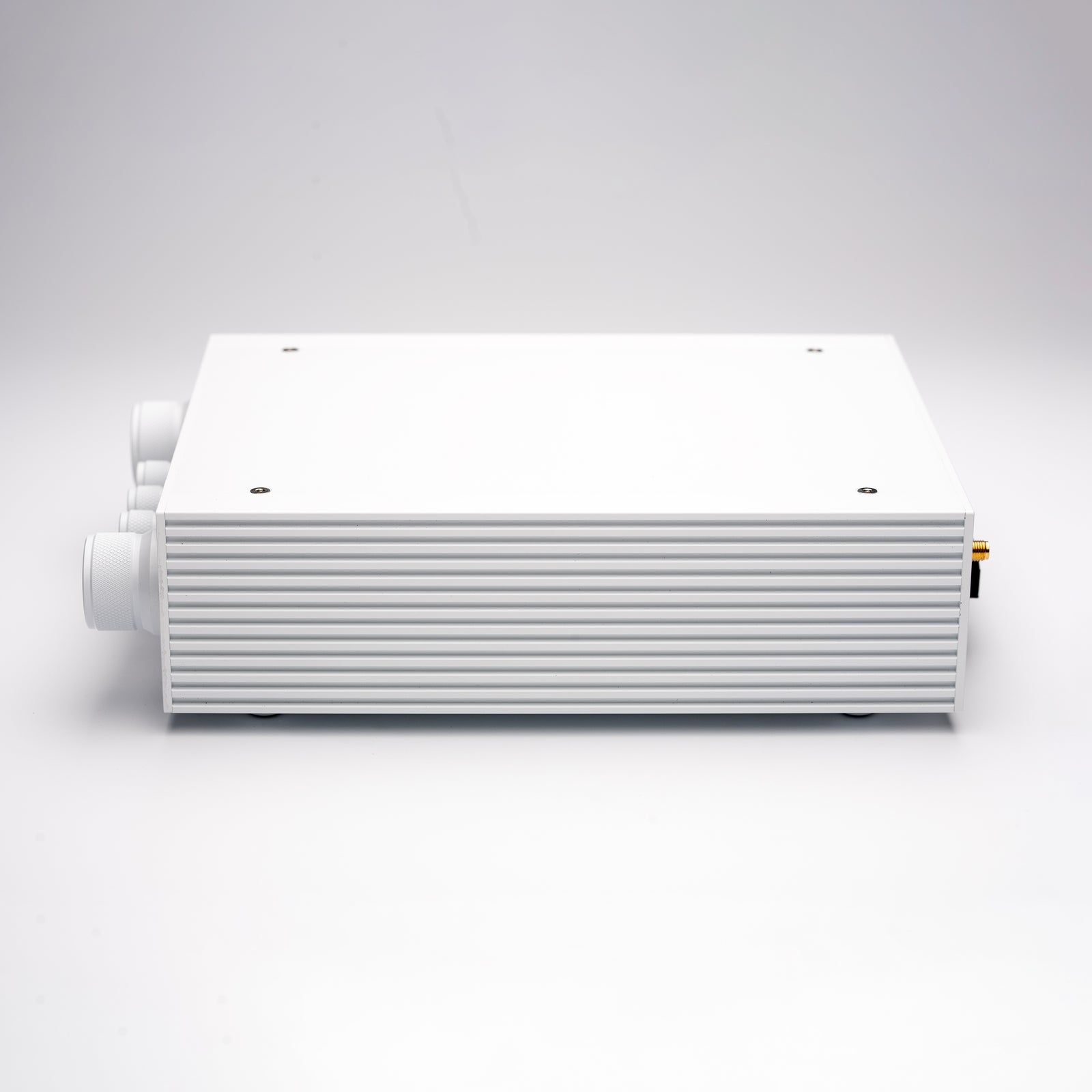

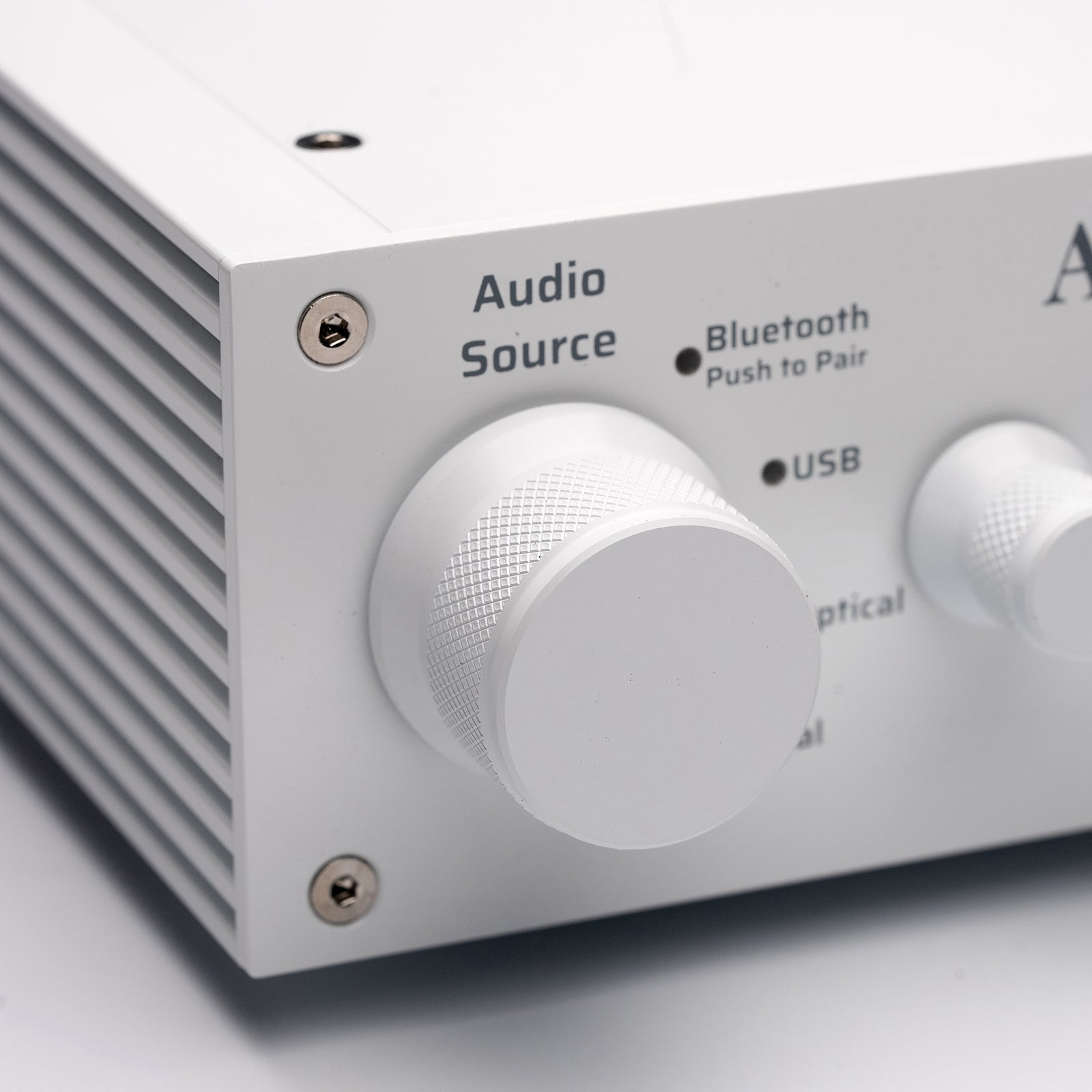

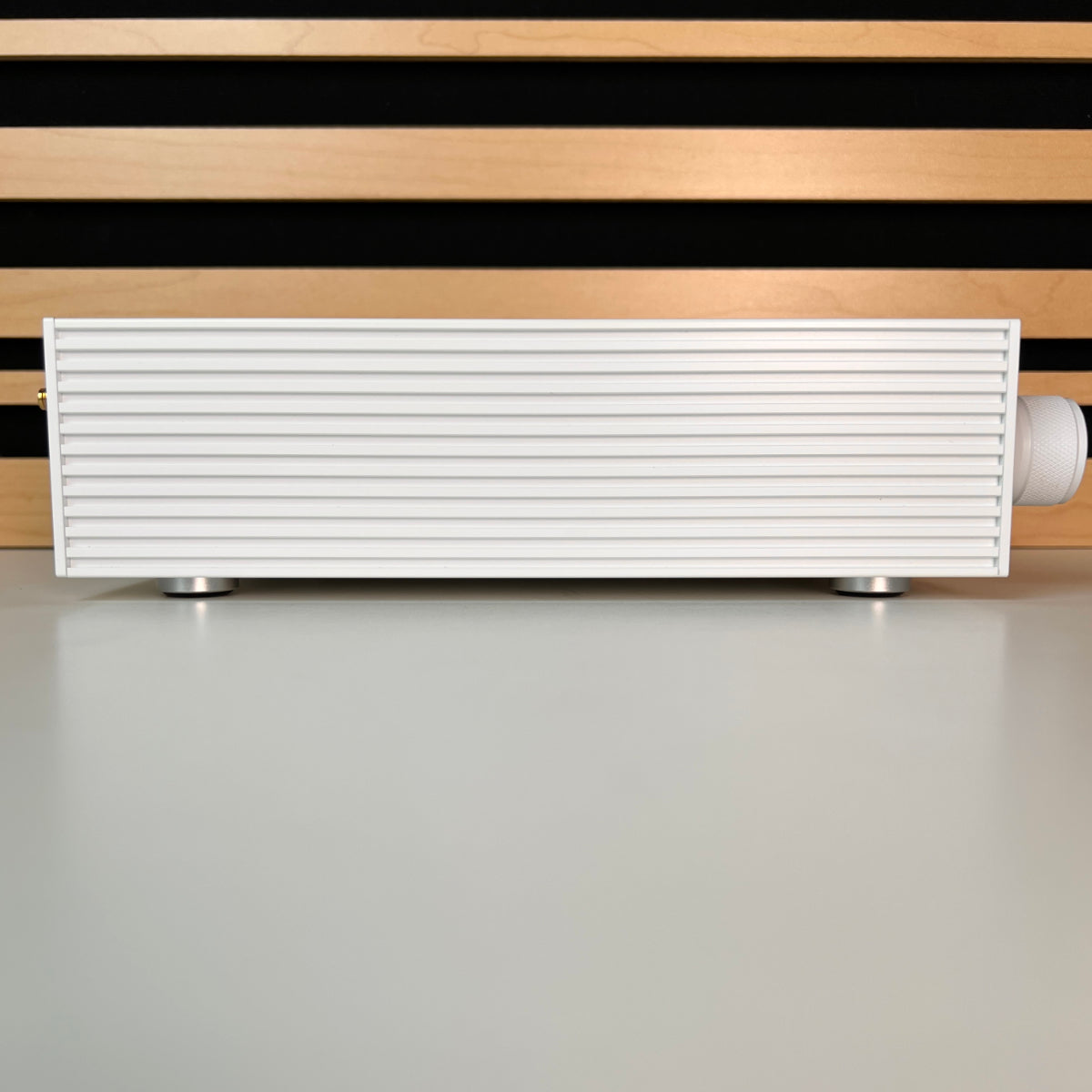

Acoustas AC650 DSP Amplifier - Deluxe Mini Edition in White
Acoustas AC650 - Deluxe Mini in White
The Acoustas AC650 in White combines elegant design with cutting-edge technology, offering a powerful DSP amplifier tailored for speaker builders. With a 10-channel speaker manager and 6 powered channels, it provides unmatched flexibility for managing crossovers, setting PEQs, live tuning, and A/B testing presets in real time via WiFi - allowing you to hear the results instantly.

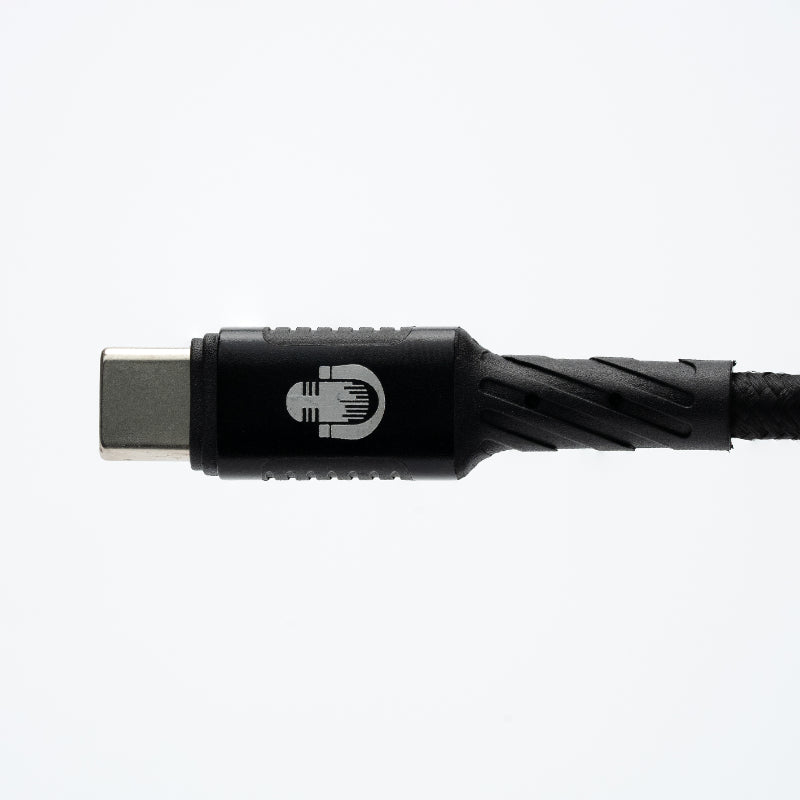

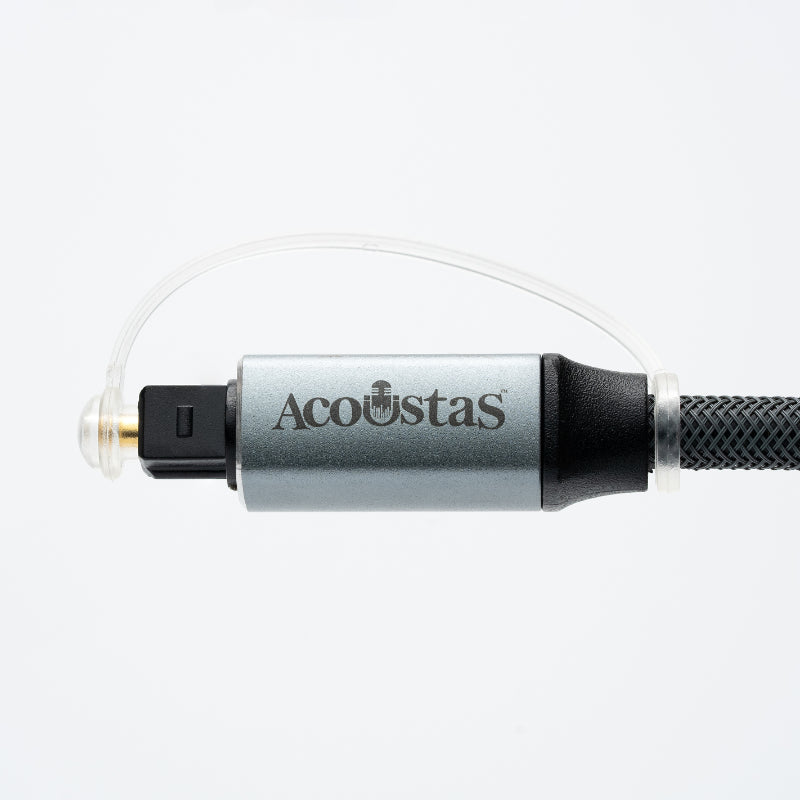

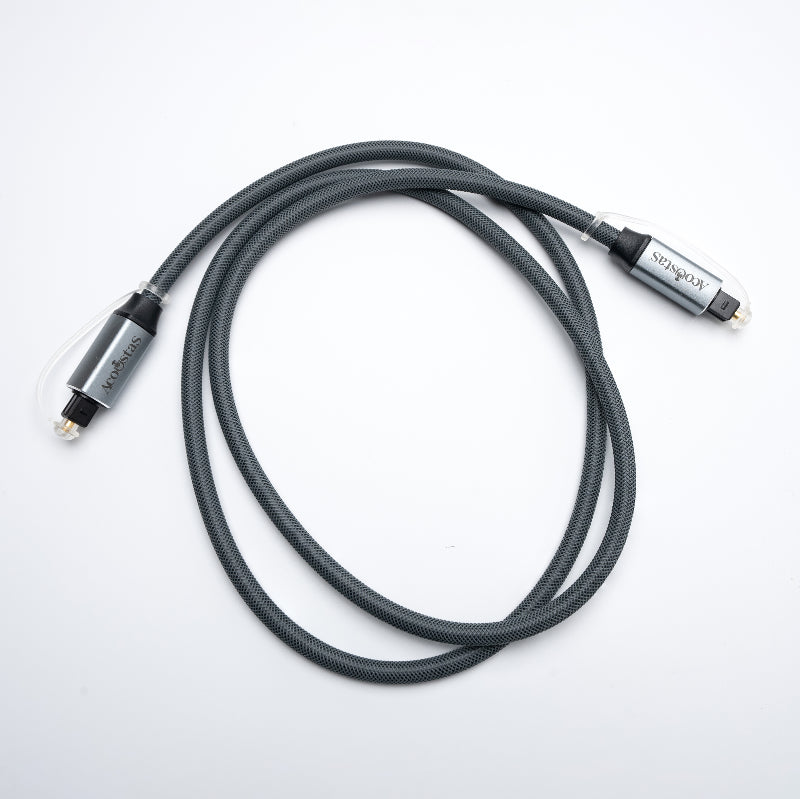

Control is at your fingertips with compatibility across iPhone, iPad, macOS, Android, and Windows (coming soon) devices. Built with premium components, including Acoustas Cables, a CUI Inc. power supply, and a refined White finish, the AC650 ensures both durability and style.
The amplifier’s highly refined signal path, leveraging I2S technology, delivers the shortest possible route from source to signal processor to amplifier. This minimizes noise and maximizes audio fidelity, ensuring your sound is as clean and accurate as possible. Each feature — crossovers, equalizers, and more — has been rigorously tested, with comprehensive measurements and a technical report included to guarantee reliable performance.
Proudly designed and assembled in the USA, the AC650 comes with a 30-day, risk-free guarantee — if it’s not the perfect fit, simply return it in its original condition for a full refund. Our team in Richmond, Virginia, is always available to answer your questions and provide support.
The AC650 is a forward-thinking investment, with regular updates to our app ensuring continuous enhancements and new features, keeping your system at the cutting edge of audio technology.

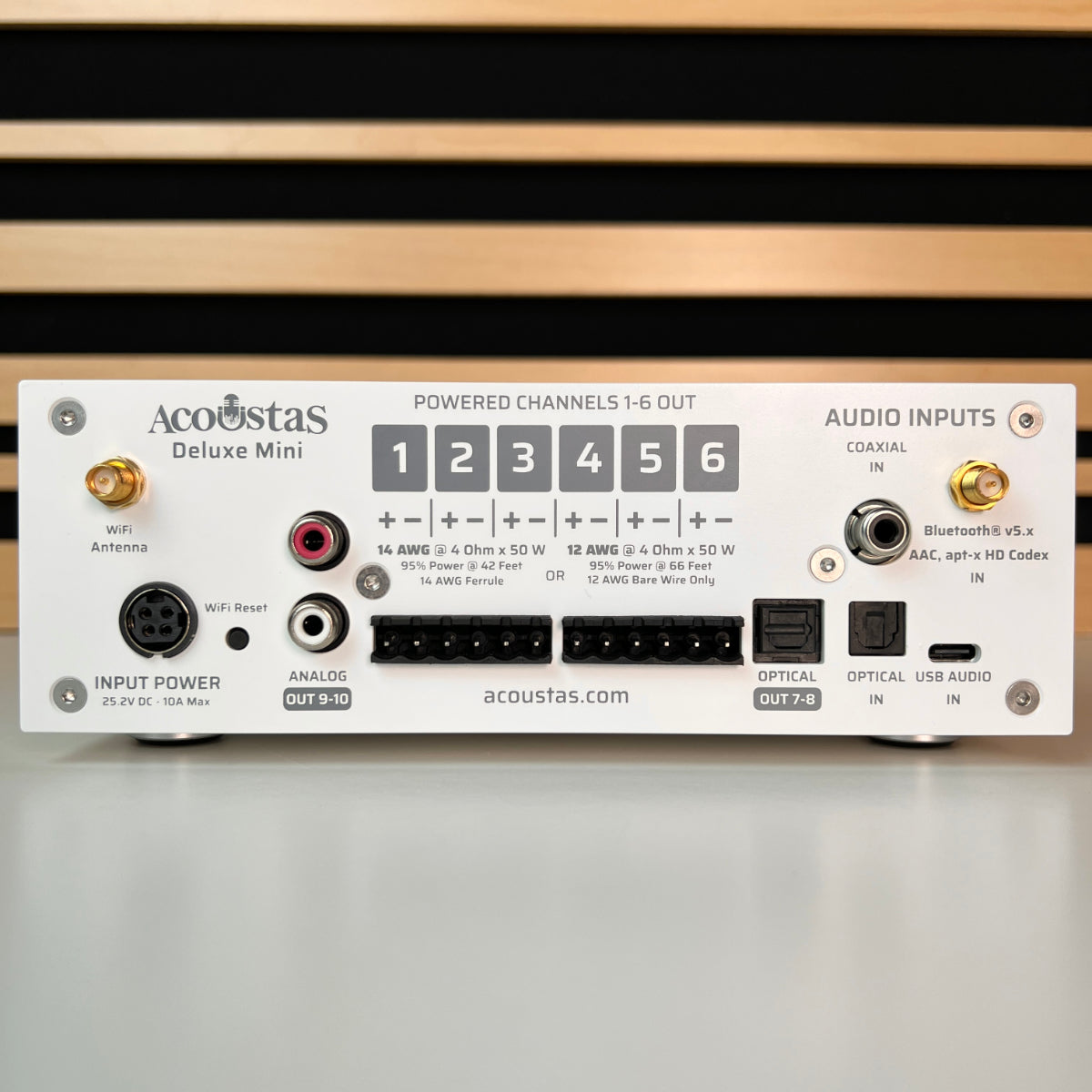

Specifications:
- Bluetooth® AptX-HD

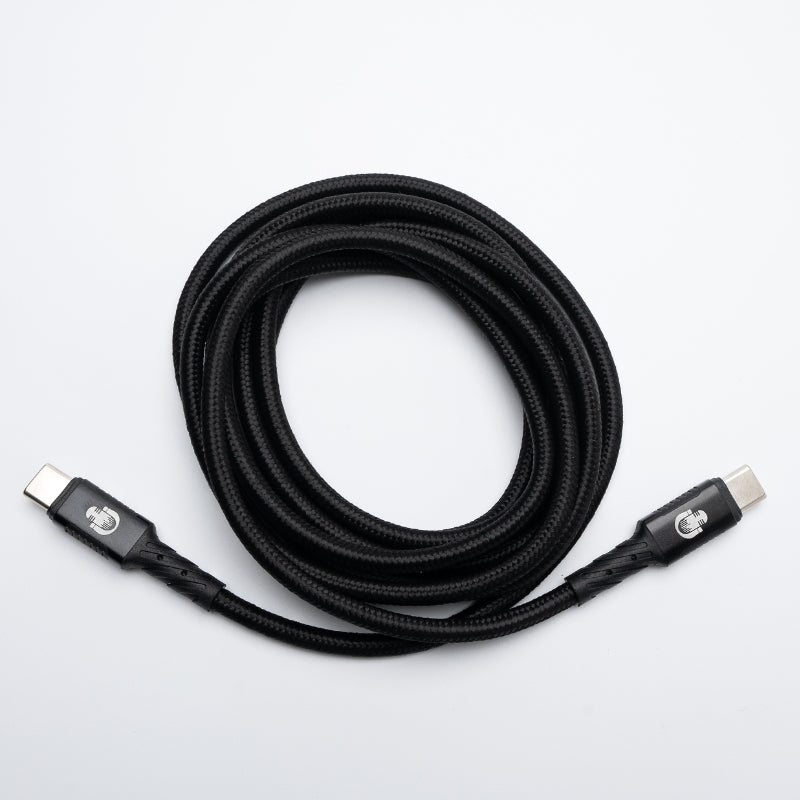

- USB Audio 24bit/192kHz
- Optical (S/PDIF) up to 24bit/192kHz
- Coaxial (S/PDIF) up to 24bit/192kHz
- 1-6 Powered Outputs (50W/CH)
- 7-8 Optical (S/PDIF) Outputs
- 9-10 RCA Outputs
A,B,C, and D presets will store: Tone, Channel Gains, Inverts, Time Delays, Crossovers, and EQs for each preset. Average switch time from preset to preset 5ms.
New features and updates will be available through the Acoustas App.
Technical Specifications:
0.073505% @ 1kHz
62.68dB @ 1kHz
100dB @ 36 Watts into 4 Ohms
6 channels simultaneously continuous power maximum
For 199.2W power supply:
- 30W into 4 Ohms
- 30W into 8 Ohms
For 252.0 W power supply:
- 37W into 4 Ohms
- 37W into 8 Ohms
4 channels simultaneously continuous power maximum
For 199.2W power supply:
- 45W into 4 Ohms
- 40W into 8 Ohms
For 252.0 W power supply:
- 54W into 4 Ohms
- 40W into 8 Ohms
2 channels simultaneously continuous power maximum
For 199.2W power supply:
- 45W into 4 Ohms
- 40W into 8 Ohms
For 252.0 W power supply:
- 54W into 4 Ohms
- 40W into 8 Ohms
- 2 Channels up to 24-bit/192kHz Optical
- Up to 50-foot cable at 24-bit/96kHz
- 2 Channels Analog Outputs
- 112dB SNR 2.1V RMS
- Up to 50-foot RCA cable

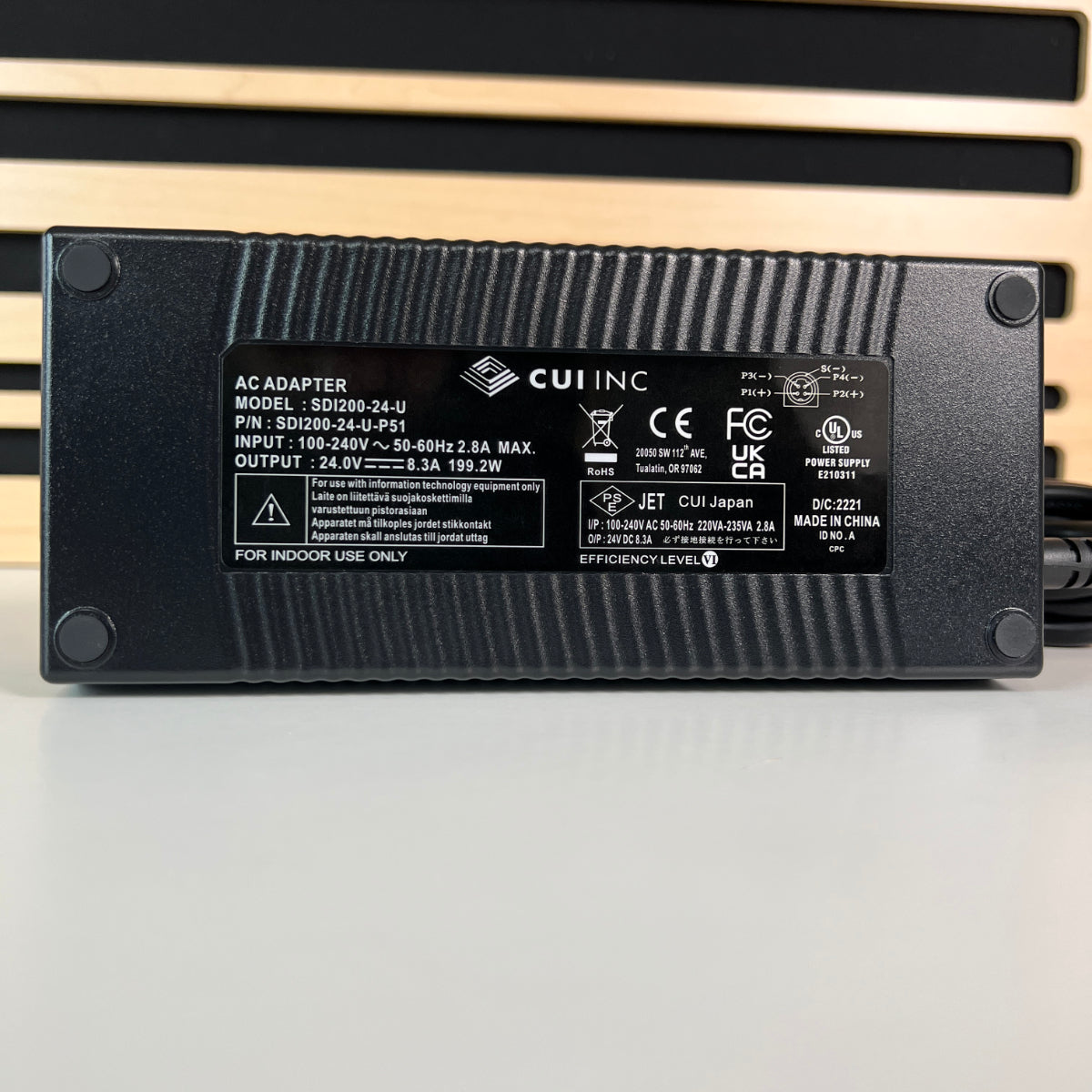

- 24 V DC - 8.3A (CUI, Inc. for Deluxe Mini)
- 25.2V DC - 10A (Onyx)
Rich Profile
Features all available modules and the DSP samples at 24bit/96kHz
Pure Profile
Features core modules only and the DSP samples at 24bit/192kHz
Simultaneous programming 1-10 channels via WiFi
1-10 Channels
0-50ms
High Pass and Low Pass 20-20kHz
Butterworth 6,12,18,24,30,36,42,48 dB/Oct
Linkwitz-Riley 12,24,36,48 dB/Oct
Bessel 6,12,18,24,30,36,42,48 dB/Oct
Live tuning of 1-10 channels
Frequency, Gain and Q
9" x 7" x 2.6"
3 lb 11 oz
2.4 GHz
